teb dashpot mos kaw hinges damper chaw tsim tshuaj paus.
Qhov twg yuav poob siab absorber teb damper feem ntau kaw hinges damper? Shanghai Toyou Kev Lag Luam Co., Ltd yog cov chaw tsim khoom lag luam ntawm rotary damper thiab muaj 15 xyoo kev tsim khoom. Peb muaj peb tus kheej lub rooj cob qhia pwm, kev txhaj tshuaj rhiav, kev cob qhia ntau lawm thiab cov khoom siv kuaj. Peb muaj ib pab neeg txawj thiab paub txog technology.
Shock absorber damper used in coffee machine. Soft close hinges rotary oil damper for electric pot and car storage. How to male a rotar damper>Lub damper yog lub tshuab tivthaiv uas yog ib qho cuab yeej uas txo cov zog txav los ntawm kev muab cov lus tsa suab. Raws li cov khoom sib txawv, nws tuaj yeem muab faib ua lub caij nplooj ntoos hlav damper, hydraulic damper, mem tes damper, teb damper, cua damper, viscous damper, damping pob khawm, damping swb, thiab lwm yam.

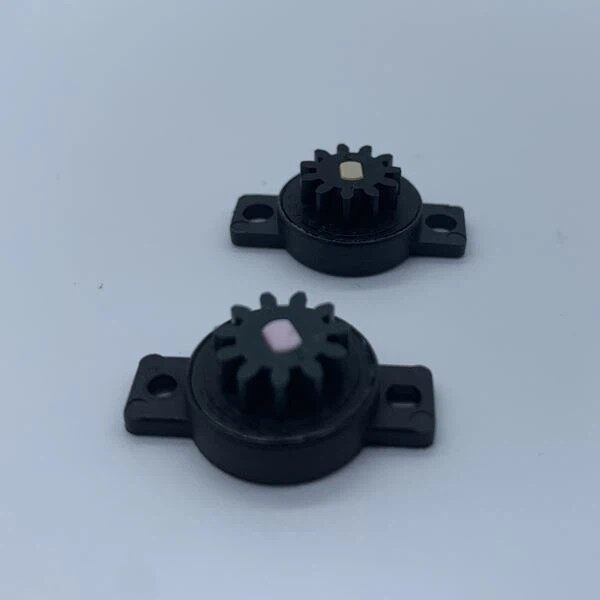

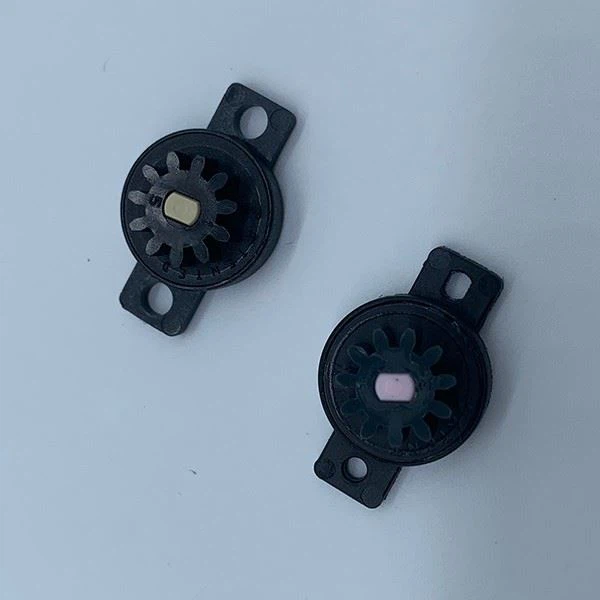

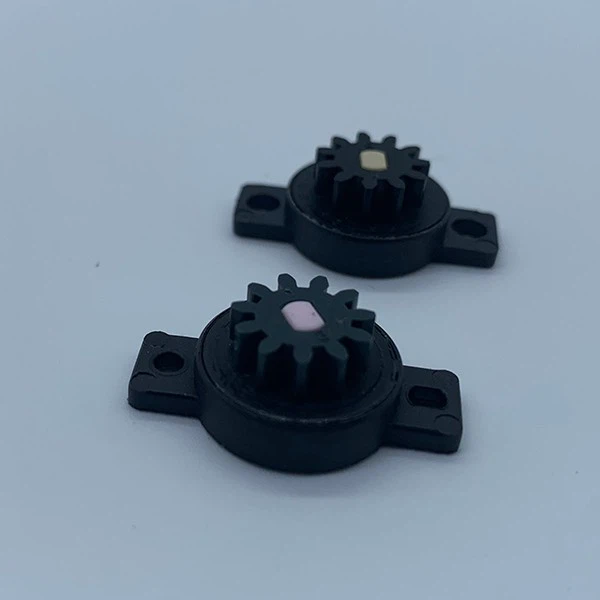

Barrel Damper TRD-TA8 Loj
Barrel Damper TRD-TA8 Specification
Torque | |
0.2 | {{0}}.2± 0.05 cN·m |
0.3 | {{0}}.3± 0.05 cN·m |
0.4 | {{0}}.4±0.06 cN·m |
0.55 | {{0}}.55±0.07 cN·m |
0.7 | {{0}}.7±0.08 cN·m |
0.85 | {{0}}.85 ± 0.09 cN·m |
1 | 1.0±{2}}.1 cN·m |
1.4 | 1.4 ± 0.13 cN·m |
1.8 | 1.8 ± 0.18 cN·m |
X | Customized |
Khoom siv | |
Puag | PC |
Roter | POM |
Npog | PC |
iav | POM |
O-Ring | Silicon roj hmab |
Kua dej | Silicon roj |
Lub neej | |
Kub | Chav kub: 23 degree |
Ib lub voj voog | → 1.5 txoj kev moos, (90r / min) → 1 txoj kev anticlockwise (90r / min) |
Lub neej | 50000 cycles |
Barrel Damper TRD-TA8 Yam ntxwv
Torque vs angular ceev (ntawm chav tsev kub: 23 degree)
Torque ntawm cov roj damper torque hloov los ntawm tig ceev raws li qhia hauv daim duab. Torque nce los ntawm rotate ceev nce.
Torque vs kub (roj ceev: 20r / min)
Torque ntawm cov roj damper torque hloov los ntawm qhov kub thiab txias, feem ntau, Torque nce thaum kub txo thiab txo qis thaum kub nce.
